48-position, 3-row right-angle backplane connector with 2.54mm pitch. Features brass contacts with gold plating, rated for 2A current and 300V AC. Housed in grey PBT with UL94 V-0 flammability rating, operating from -55°C to 85°C. Through-hole mounting with solder termination, lead-free and RoHS compliant.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose PCN10A-48P-2.54DS(72) technical specifications.
General
Contact Material
Brass
Contact Plating
Gold
Current Rating
2A
Depth
17.72mm
Flammability Rating
UL94 V-0
Housing Color
Grey
Insulation Material
PBT
Lead Free
Lead Free
Length
53.36mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Positions
48
Number of Positions Loaded
48
Number of Rows
3
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Pitch
0.1inch
RoHS Compliant
Yes
Series
PCN10
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Hirose PCN10A-48P-2.54DS(72) Datasheet
Download the complete datasheet for Hirose PCN10A-48P-2.54DS(72) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

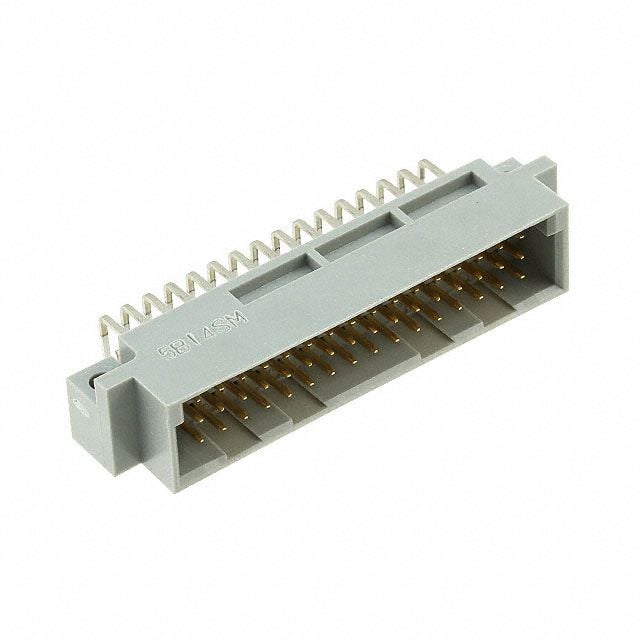

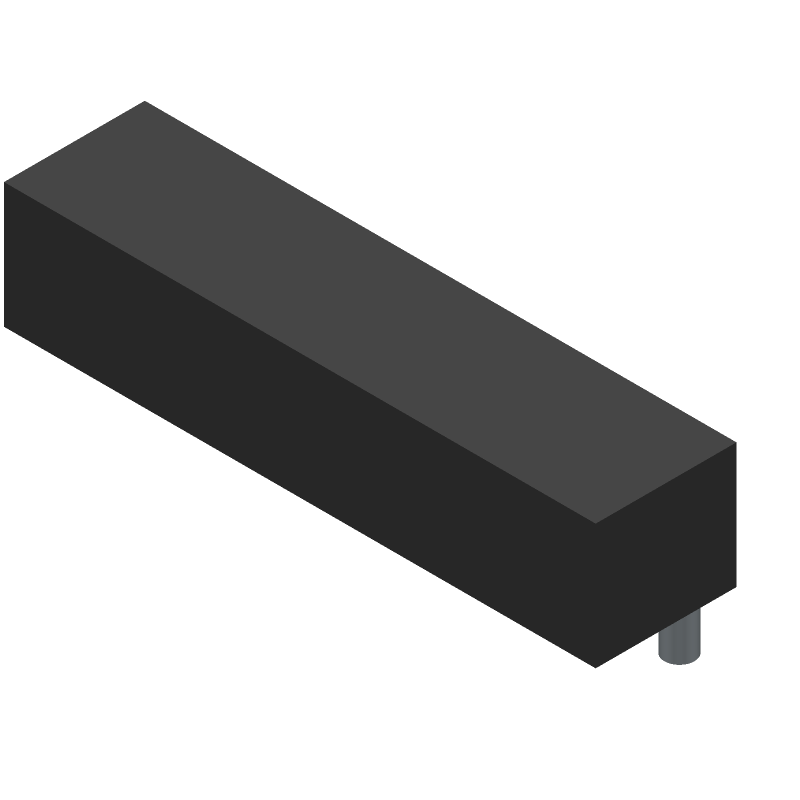

Product Images
