PackageSMD/SMT
Current1.6mA
Quick Jump:
Technical Specifications

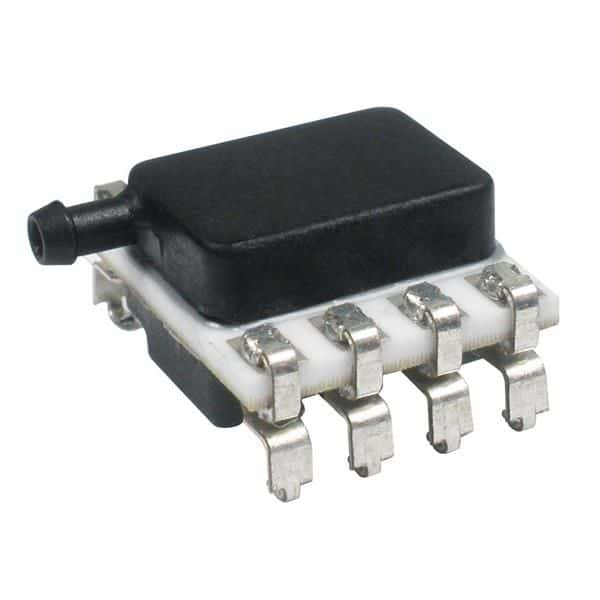

Honeywell HSCMRNN1.6BGSA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
58.02PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
23.21PSI
Output Type
Digital, SPI
Port Style
Barbed
Pressure Type
Vented Gauge
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMRNN1.6BGSA3 Datasheet
Download the complete datasheet for Honeywell HSCMRNN1.6BGSA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
