The HBL2731 connector features a 30A current rating and 480V AC voltage rating, with a maximum operating temperature of 75°C and a minimum operating temperature of -40°C. It has a nylon and polyamide body with a brass contact material and a straight orientation. The connector is rated for IP20 and is available in black and white colors. It is not RoHS compliant and its reach SVHC compliance status is unknown.
Current Rating30A
MountingCable
Quick Jump:
Technical Specifications
Hubbell HBL2731 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Nylon, Polyamide |
| Color | Black, White |
| Contact Material | Brass |
| Contact Type | Pin |
| Current Rating | 30A |
| Gender | Male |
| Max Current Rating | 30A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 480V |
| Mount | Cable |
| Number of Contacts | 4 |
| Number of Poles | 3 |
| Orientation | Straight |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Insulgrip |
| Termination | Screw |
| Voltage Rating (AC) | 480V |
| Weight | 136g |
Compliance
| RoHS | Not Compliant |
Datasheet
Hubbell HBL2731 Datasheet
Download the complete datasheet for Hubbell HBL2731 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

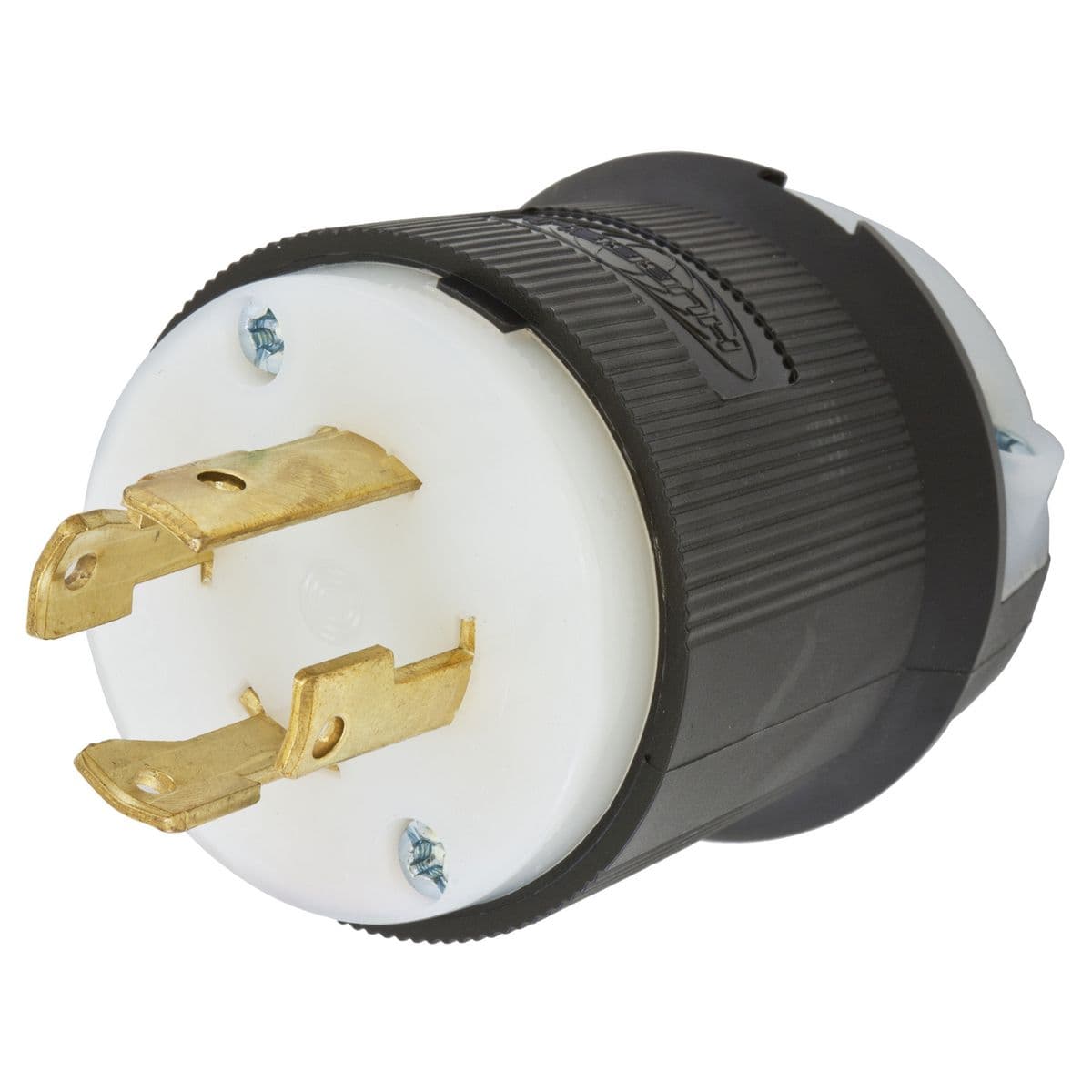

Product Images
