Technical Specifications
Hubbell HBL5369C technical specifications.
General
| Approvals | UL, CSA, NEMA |
| Body Material | Nylon, Polyamide |
| Package/Case | 125 |
| Color | Black, White |
| Contact Material | Copper Alloy |
| Current Rating | 20A |
| Gender | Female |
| Max Current Rating | 20A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Cable |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Orientation | Straight |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | Insulgrip |
| Termination | Screw |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Hubbell HBL5369C Datasheet
Download the complete datasheet for Hubbell HBL5369C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

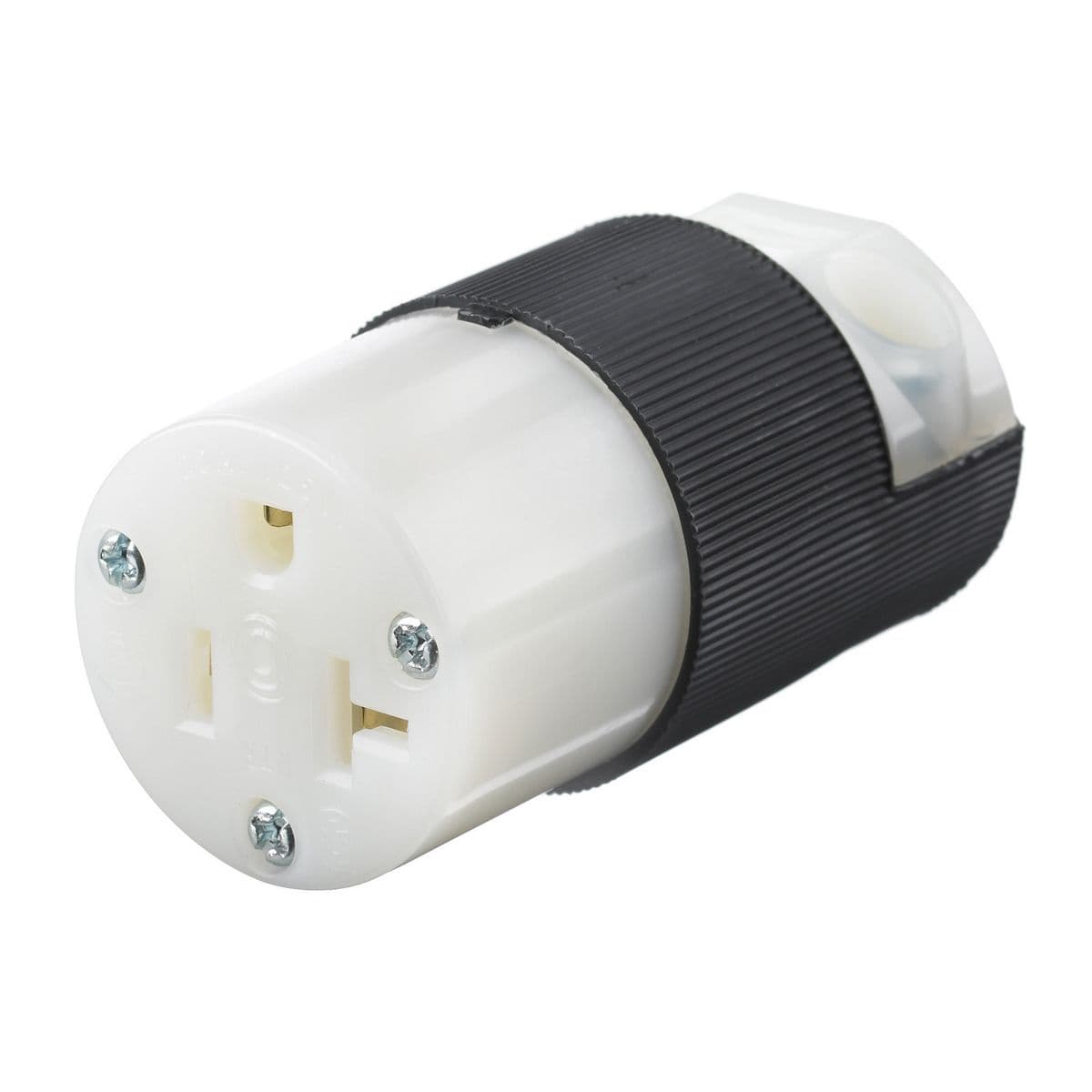

Product Images
