HY Electronics
SS34
HY ELECTRONICS - SS34 - Small Signal Schottky Diode, Single, 40 V, 3 A, 500 mV, 100 A, 125 °C
PackageDO-214AB
Quick Jump:
Technical Specifications
HY Electronics SS34 technical specifications.
General
Package/Case
DO-214AB
Forward Current
3A
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
HY Electronics SS34 Datasheet
Download the complete datasheet for HY Electronics SS34 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

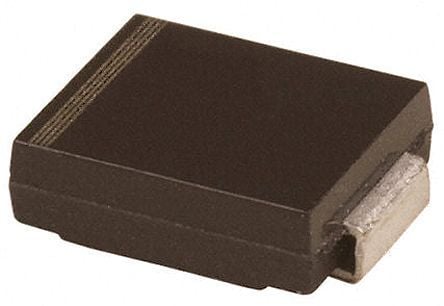

Product Images
