Infineon
XC8888FFI5VACFXUMA1
Microcontroller, 8-Bit, FLASH, 24MHz, CMOS, PQFP64, GREEN, PLASTIC, TQFP-64
Frequency24MHz
PackageTQFP
Quick Jump:
Technical Specifications
Infineon XC8888FFI5VACFXUMA1 technical specifications.
General
Package/Case
TQFP
Core Architecture
8051
Data Bus Width
8b
Halogen Free
Halogen Free
Interface
UART, USART, SPI
Max Frequency
24MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of Programmable I/O
48
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1.75KB
RoHS Compliant
Yes
Series
XC8xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Infineon XC8888FFI5VACFXUMA1 Datasheet
Download the complete datasheet for Infineon XC8888FFI5VACFXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

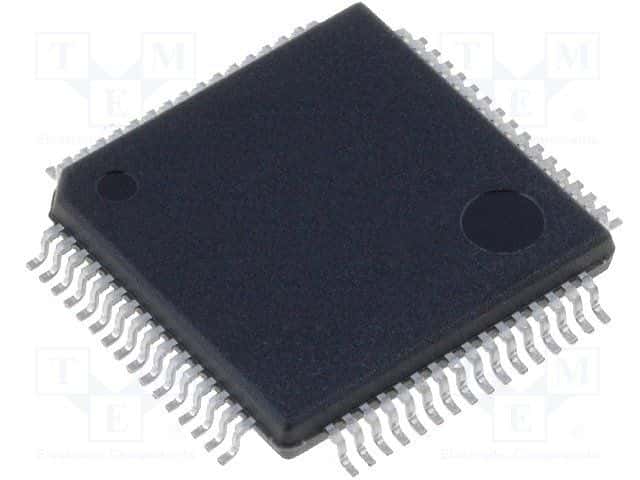

Product Images
