PackageL
MountingSurface Mount
PolarityN-CHANNEL
Power2.8W
Quick Jump:
Technical Specifications
International Rectifier IRF6717MTR1PBF technical specifications.
General
Package/Case
L
Continuous Drain Current (ID)
38A
Drain to Source Breakdown Voltage
25V
Drain to Source Resistance
2.1mR
Drain to Source Voltage (Vdss)
25V
Drain-source On Resistance-Max
1.25MR
Dual Supply Voltage
25V
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Height
0.62mm
Input Capacitance
6.75nF
Lead Free
Lead Free
Length
5.45mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.8W
Mount
Surface Mount
Nominal Vgs
1.8V
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
2.8W
Radiation Hardening
No
Rds On Max
1.25mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Termination
SMD/SMT
Threshold Voltage
1.8V
Turn-Off Delay Time
19ns
Turn-On Delay Time
25ns
Width
5.05mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF6717MTR1PBF Datasheet
Download the complete datasheet for International Rectifier IRF6717MTR1PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

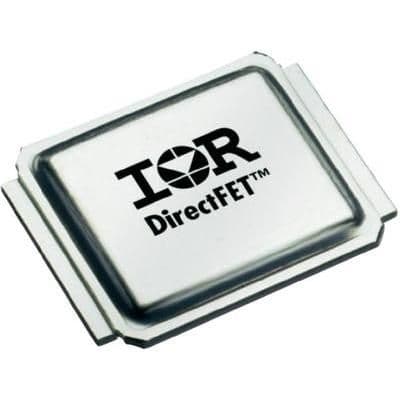

Product Images
