International Rectifier
IRFH3707TR2PBF
INTERNATIONAL RECTIFIER IRFH3707TR2PBF MOSFET, N CH, 30V, 12A, PQFN33
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRFH3707TR2PBF technical specifications.
General
Continuous Drain Current (ID)
12A
Drain to Source Voltage (Vdss)
30V
Drain-source On Resistance-Max
12.4MR
Fall Time
9.7ns
Gate to Source Voltage (Vgs)
20V
Height
0.95mm
Input Capacitance
755pF
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.8W
Mount
Surface Mount
Nominal Vgs
1.8V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Rds On Max
12.4mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Turn-Off Delay Time
8.7ns
Turn-On Delay Time
7.8ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRFH3707TR2PBF Datasheet
Download the complete datasheet for International Rectifier IRFH3707TR2PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

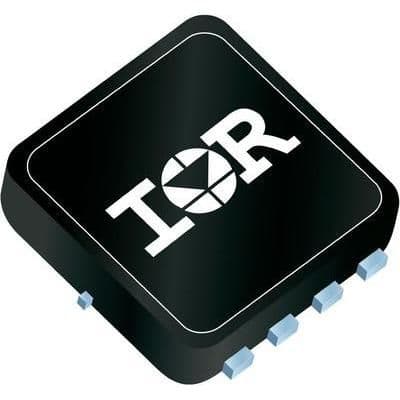

Product Images
