Technical Specifications
International Rectifier IRFH5004TRPBF technical specifications.
General
Continuous Drain Current (ID)
100A
Drain to Source Voltage (Vdss)
40V
Drain-source On Resistance-Max
2.6MR
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.6W
Nominal Vgs
4V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
4V
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRFH5004TRPBF Datasheet
Download the complete datasheet for International Rectifier IRFH5004TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

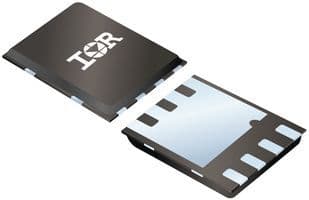

Product Images
