PackageQFN
MountingSurface Mount
PolarityN-CHANNEL
Power3.6W
Quick Jump:
Technical Specifications
International Rectifier IRFH5206TR2PBF technical specifications.
General
Package/Case
QFN
Continuous Drain Current (ID)
16A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
6.7mR
Drain to Source Voltage (Vdss)
60V
Fall Time
8.2ns
Gate to Source Voltage (Vgs)
20V
Height
0.9mm
Input Capacitance
2.49nF
Length
6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.6W
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
3.6W
Radiation Hardening
No
Rds On Max
6.7mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Threshold Voltage
4V
Turn-Off Delay Time
22ns
Turn-On Delay Time
6.4ns
Width
5mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRFH5206TR2PBF Datasheet
Download the complete datasheet for International Rectifier IRFH5206TR2PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

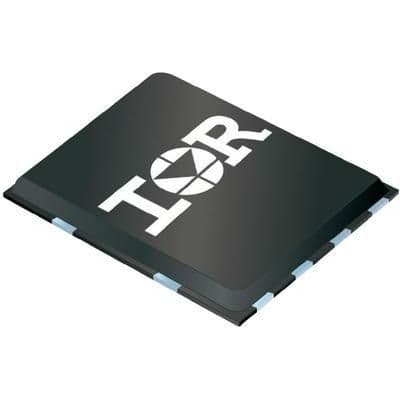

Product Images
