N-channel MOSFET featuring 200V drain-source breakdown voltage and 3.8A continuous drain current. Offers a low 99.9mΩ drain-source on-resistance at a nominal 5V gate-source voltage. This surface-mount component, housed in a VQFN package, boasts fast switching characteristics with turn-on delay of 7.2ns and fall time of 3.4ns. Operating across a wide temperature range from -55°C to 150°C, it supports up to 3.6W of power dissipation and is RoHS compliant.
PackageVQFN
MountingSurface Mount
PolarityN-CHANNEL
Power3.6W
Quick Jump:
Technical Specifications
International Rectifier IRFH5220TR2PBF technical specifications.
General
Package/Case
VQFN
Continuous Drain Current (ID)
3.8A
Drain to Source Breakdown Voltage
200V
Drain to Source Resistance
99.9mR
Drain to Source Voltage (Vdss)
200V
Drain-source On Resistance-Max
99.9MR
Fall Time
3.4ns
Gate to Source Voltage (Vgs)
20V
Height
0.85mm
Input Capacitance
1.38nF
Length
6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.6W
Mount
Surface Mount
Nominal Vgs
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
3.6W
Radiation Hardening
No
Rds On Max
99.9mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Turn-Off Delay Time
14ns
Turn-On Delay Time
7.2ns
Width
5mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRFH5220TR2PBF Datasheet
Download the complete datasheet for International Rectifier IRFH5220TR2PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

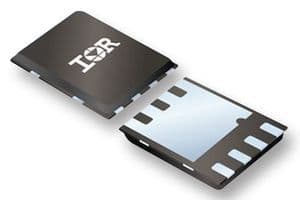

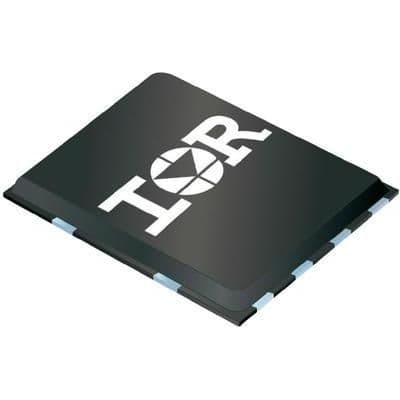

Product Images
