PackagePLCC
Current3mA
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
International Rectifier IRS26310DJPBF technical specifications.
General
| Package/Case | PLCC |
| Fall Time | 50ns |
| Height | 3.69mm |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 350mA |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 12V |
| Mount | Surface Mount |
| Number of Drivers | 3 |
| Number of Outputs | 6 |
| Output Current | 200mA |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Power Dissipation | 2W |
| Propagation Delay | 750ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Turn-Off Delay Time | 530ns |
| Turn-On Delay Time | 530ns |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRS26310DJPBF Datasheet
Download the complete datasheet for International Rectifier IRS26310DJPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

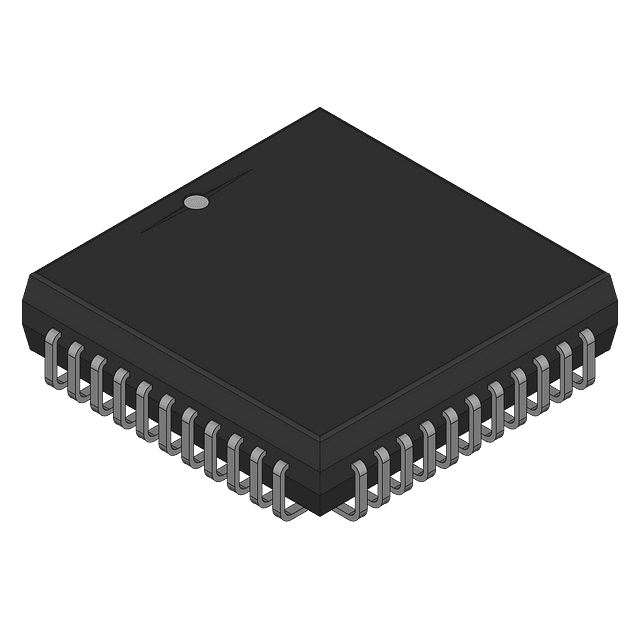

Product Images
