2.4GHz PCB trace chip antenna, offering 50 Ohm impedance and a VSWR of 2. Features a single band operation with a frequency range from 2.4GHz to 2.5GHz. Designed for connector mounting and supplied in bulk packaging.
Frequency2.5GHz
MountingConnector
Quick Jump:
Technical Specifications
Inventek Systems W24P-U technical specifications.
General
| Impedance | 50R |
| Max Frequency | 2.5GHz |
| Min Frequency | 2.4GHz |
| Mount | Connector |
| Number of Bands | 1 |
| Packaging | Bulk |
| Series | eS-WiFi™ |
| VSWR | 2 |
Compliance
| RoHS | Compliant |
Datasheet
Inventek Systems W24P-U Datasheet
Download the complete datasheet for Inventek Systems W24P-U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

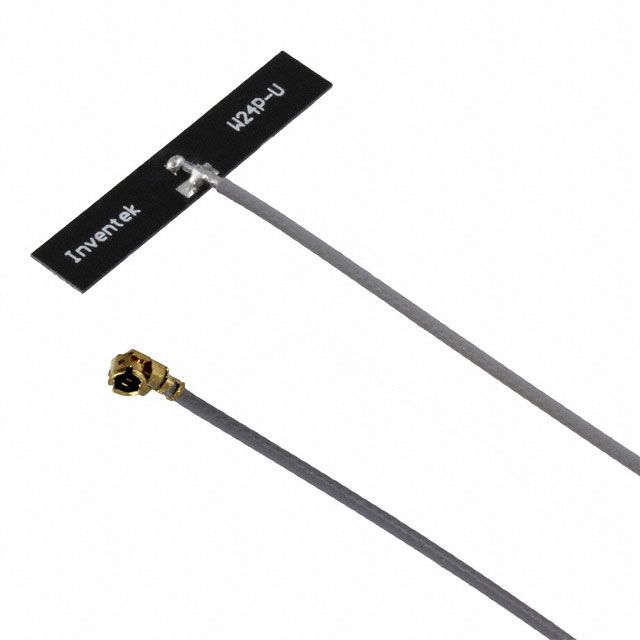

Product Images
