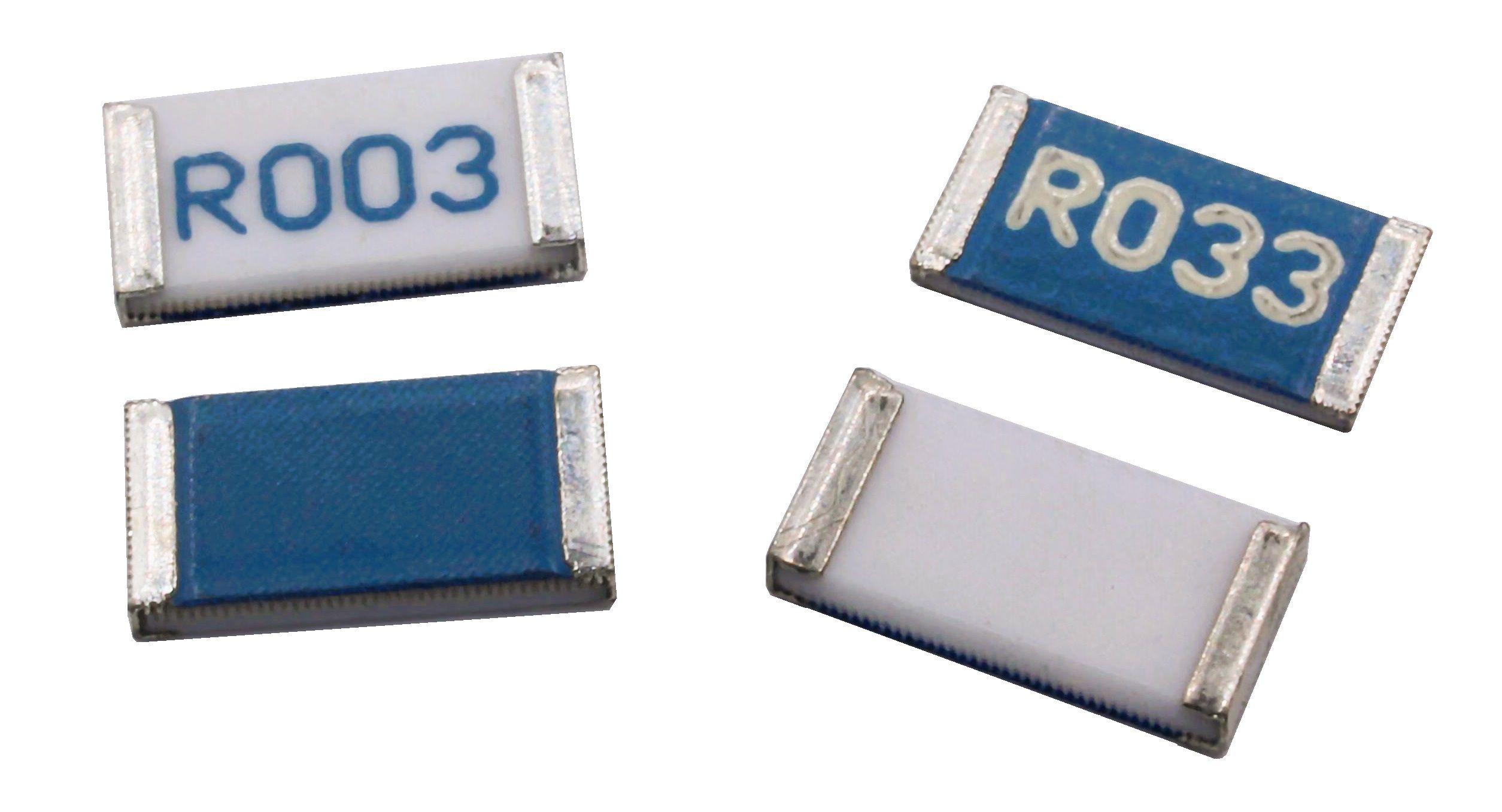

Low-value flat chip resistor provides 10 mΩ resistance in a 2512 surface-mount package. The LR(F)2512 family uses thick-film construction on a 96% alumina substrate with plated copper wraparound terminations. It is rated for 2 W at 70 °C and derates to zero power at 150 °C. The device supports reflow or wave solder mounting and uses flip-chip construction for resistance values at or below 25 mΩ.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the IRC LRF2512-01-R010-J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Resistance | 0.010Ω |
| Resistance tolerance | ±5% |
| Power rating | 2W |
| Rated ambient temperature | 70°C |
| Maximum ambient temperature | 150°C |
| Derated-to-zero ambient temperature | 150°C |
| Package size | 2512 |
| Mounting type | SMD solder |
| Technology | Thick film |
| Application | Current sense |
| Resistance range minimum | 0.003Ω |
| Resistance range maximum | 1Ω |
| Best TCR | 100ppm/°C |
| Isolation voltage of insulation | 200V |
| Moisture sensitivity level | MSL 1 |
| Substrate material | 96% alumina |
| Termination construction | Plated copper wraparound with nickel barrier |
