Technical Specifications
Isocom 4N25X technical specifications.
General
| Package/Case | DIP |
| Collector-emitter Voltage-Max | 500mV |
| Fall Time | 2us |
| Forward Current | 60mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Max Input Current | 60mA |
| Max Output Voltage | 30V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 30V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Isocom 4N25X Datasheet
Download the complete datasheet for Isocom 4N25X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

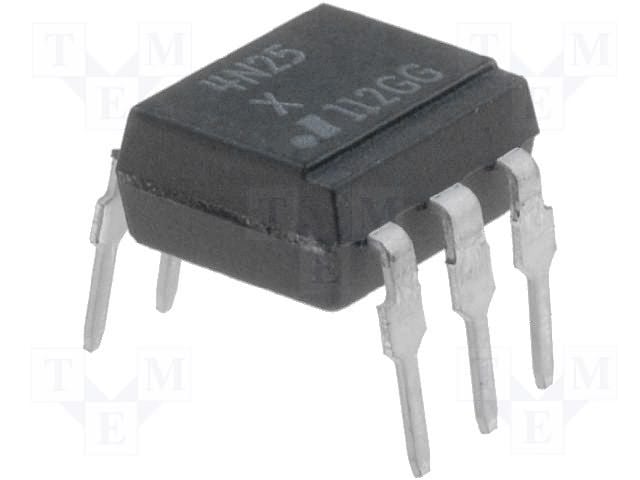

Product Images
