Isocom
CNY17-4X
Transistor Output Optocoupler, 1-Element, 5300V Isolation, ROHS COMPLIANT, PLASTIC, DIP-6
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Isocom CNY17-4X technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
320%
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Isocom CNY17-4X Datasheet
Download the complete datasheet for Isocom CNY17-4X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

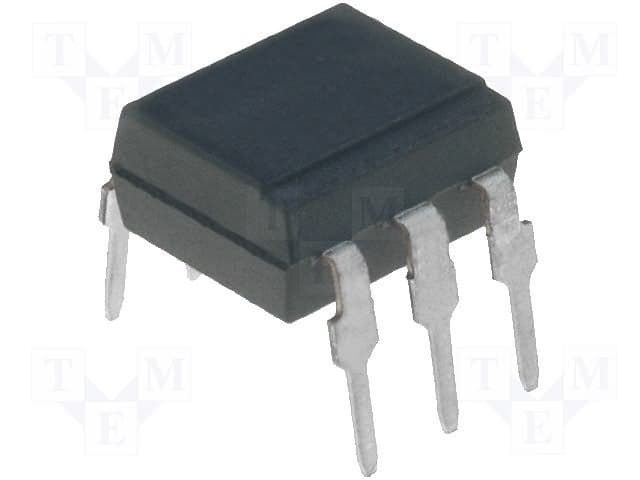

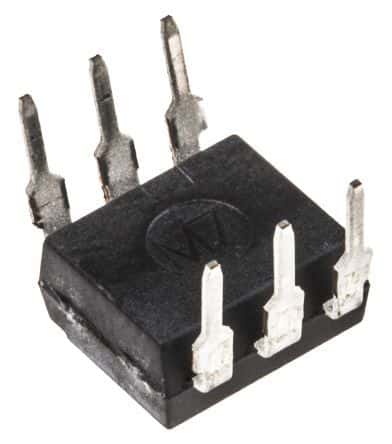

Product Images
