Isocom
IS181GB
Transistor Output Optocoupler, 1-Element, 3750V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4
PackageSMD/SMT
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Isocom IS181GB technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Packaging
Cut Tape
Power Dissipation
170mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Isocom IS181GB Datasheet
Download the complete datasheet for Isocom IS181GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

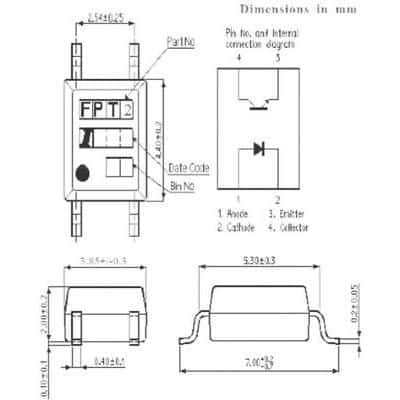

Product Images
