Isocom
SFH615A-4X
Transistor Output Optocoupler, 1-Element, 5300V Isolation, ROHS COMPLIANT, PLASTIC, DIP-4
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Isocom SFH615A-4X technical specifications.
General
Package/Case
DIP
Collector-emitter Voltage-Max
400mV
Forward Current
50mA
Input Current
50mA
Input Type
DC
Isolation Voltage
5.3kV
Min Operating Temperature
-30°C
Max Output Voltage
70V
Mount
Through Hole
Number of Channels
1
Output Current per Channel
50mA
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Isocom SFH615A-4X Datasheet
Download the complete datasheet for Isocom SFH615A-4X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

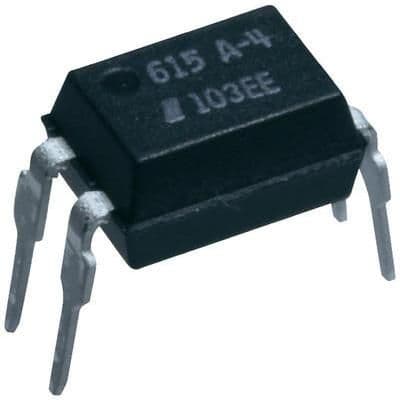

Product Images
