ITT
CA06COMPG24-2SB44F0
CIRCULAR, SIZE 24, 11WAYS, SKT (L/C); Product Range:CA-COM-B Series, MIL-DTL-5015 Series Equivalent; Circular Connector Shell Style:Straight Plug; No. of Contacts:7; Circular Contact Type:Solder Socket - Contacts Not Supplied; Coupling Style:Bayonet; Insert Arrangement:24-2; Connector Body Material:Aluminium Alloy Body; Connector Body Plating:Zinc Die Cast, Nickel; Contact Material:Copper Alloy; Contact Plating:Silver; Insert Rotation:N; Service Class:Environmentally Sealed; Approval Category:VG95234
Quick Jump:
Technical Specifications
ITT CA06COMPG24-2SB44F0 technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Nickel |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Gender | Male |
| Number of Contacts | 7 |
| Number of Positions | 11 |
| Reach SVHC Compliant | No |
| Series | CA-COM-Bayonet |
Compliance
| RoHS | Compliant |
Datasheet
ITT CA06COMPG24-2SB44F0 Datasheet
Download the complete datasheet for ITT CA06COMPG24-2SB44F0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

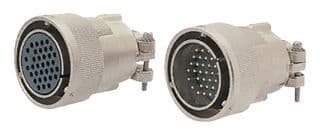

Product Images
