Environmentally resistant circular connector featuring 18 gold-plated copper alloy contacts in a straight, solder termination configuration. This receptacle offers a 7.5A current rating and operates within a -55°C to 125°C temperature range, with a maximum DC voltage rating of 850.6kV. Constructed with an aluminum body plated in cadmium and chromate, it supports box mounting with flanges and is rated IP67.
Current Rating7.5A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
ITT KPT02E14-18P technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 7.5A |
| Depth | 28.98mm |
| Gender | Receptacle |
| Length | 12.14mm |
| Max Current Rating | 7.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 850.6kV |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 18 |
| Number of Ports | 1 |
| Number of Positions | 18 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Aluminium, Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant, IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, KPT |
| Shell Plating | Cadmium |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
ITT KPT02E14-18P Datasheet
Download the complete datasheet for ITT KPT02E14-18P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

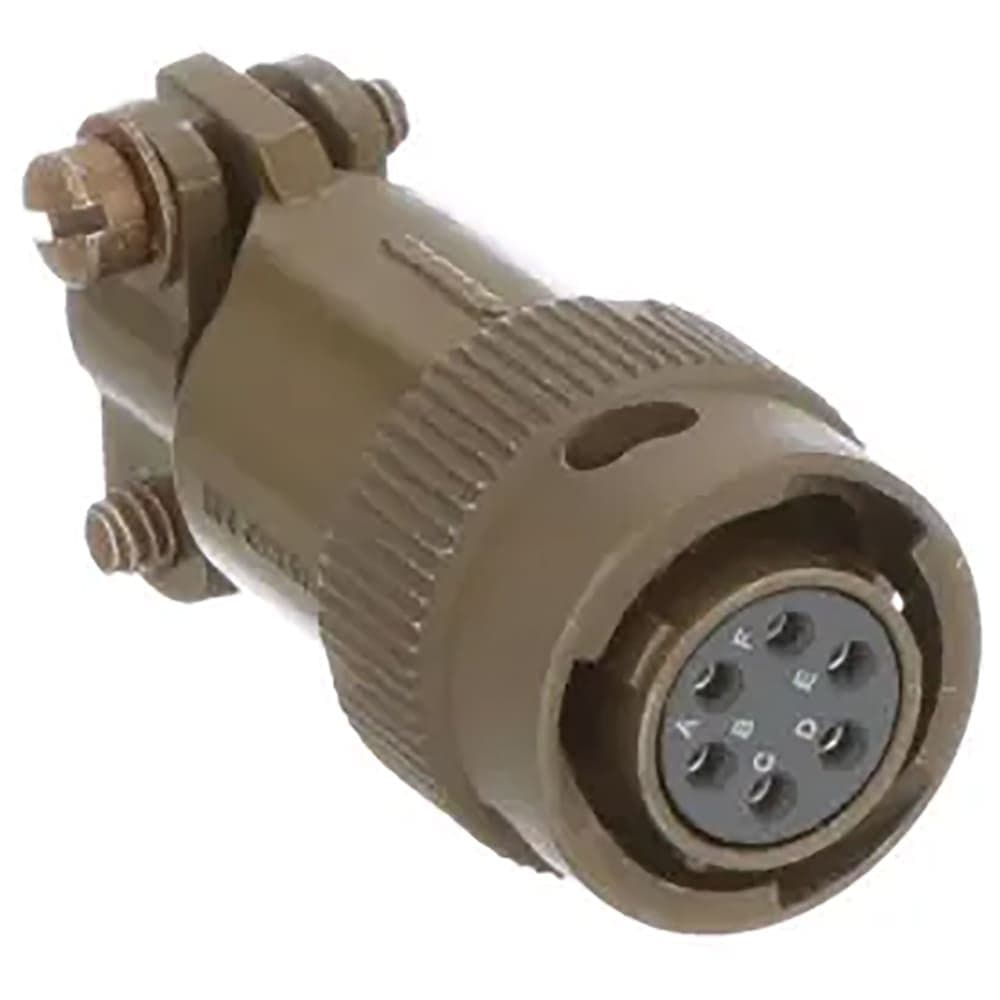

Product Images
