Circular connector, KPT Series, MIL-DTL-26482 Series I equivalent, straight plug with 18 positions. Features aluminum body with cadmium plating and gold-plated copper alloy contacts. Rated for 7.5A current and 600VAC/850VDC voltage, operating between -55°C and 125°C. Environmentally resistant with solder termination and integrated strain relief.
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
ITT KPT06F14-18S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 7.5A |
| Gender | Female |
| Length | 48.41mm |
| Max Current Rating | 7.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Primary Type | CIRCULAR |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | KPT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 850V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
ITT KPT06F14-18S Datasheet
Download the complete datasheet for ITT KPT06F14-18S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

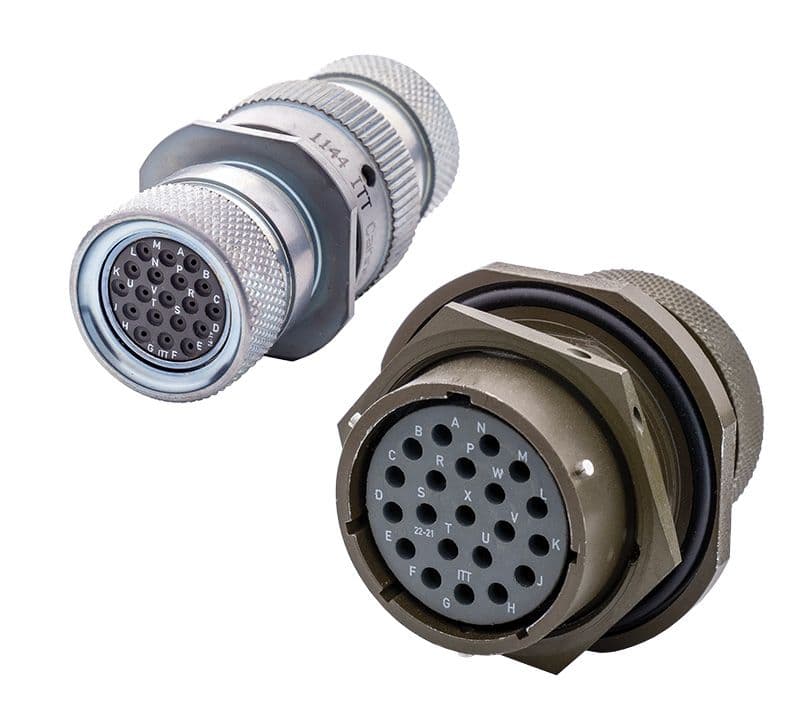

Product Images
