ITT
OS103011MS8QP1C
Switch Slide ON ON ON SP3T Top Slide 0.1A 12VDC 10000Cycles PC Pins Bracket Mount/Through Hole Bulk
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT OS103011MS8QP1C technical specifications.
General
Actuator Length
4mm
Actuator Material
Nylon, Polyamide, PA46
Actuator Type
Standard
Color
Black
Contact Material
Copper Alloy
Contact Plating
Silver
Electrical Life
10000Cycles
Max Operating Temperature
70°C
Mechanical Life
10000Cycles
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Positions
3
Packaging
Bulk
RoHS Compliant
Yes
Series
OS
Switch Function
On-On-On
Switch Travel
2mm
Termination
PC Pin
Throw Configuration
SP3T
Compliance
RoHS
Compliant
Datasheet
ITT OS103011MS8QP1C Datasheet
Download the complete datasheet for ITT OS103011MS8QP1C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

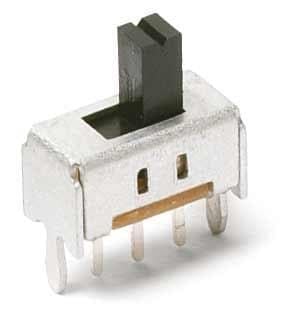

Product Images
