ITW
DA15S
ITW MCMURDO DA15S Standard D Sub Connector, Standard D Series, DA, Receptacle, 15 Contacts, Steel Body, Solder
Voltage Rating500V
MountingSocket
Quick Jump:
Technical Specifications
ITW DA15S technical specifications.
General
Body Material
Steel
Body Plating
Zinc
Contact Material
Gold
Flammability Rating
UL94 V-0
Gender
Receptacle
Material
Steel
Mating Cycles
500
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Socket
Number of Contacts
15
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Solder
Working Voltage
500V
Compliance
RoHS
Compliant
Datasheet
ITW DA15S Datasheet
Download the complete datasheet for ITW DA15S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

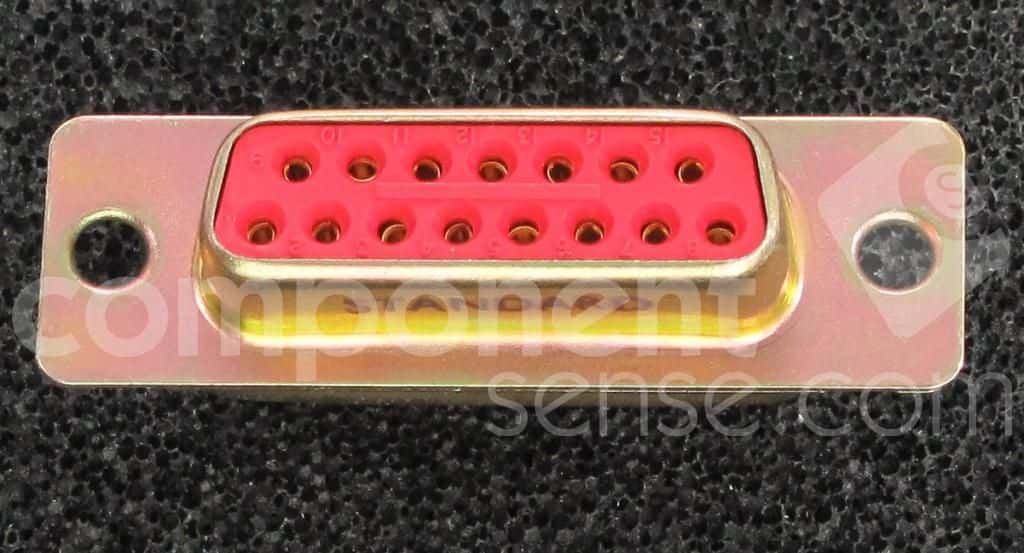

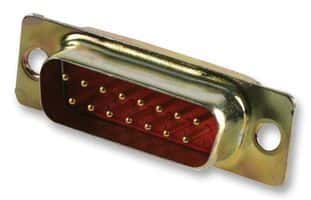

Product Images
