Voltage Rating200V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
JAE Electronics FI-S2P-HFE technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Female
Insulation Color
Beige
Insulation Material
Polymer
Lead Free
Lead Free
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Positions
2
Number of Rows
1
Package Quantity
1
Packaging
Strip
Pitch
1.25mm
RoHS Compliant
Yes
Series
FI
Termination
Solder
Voltage Rating
200V
Compliance
RoHS
Compliant
Datasheet
JAE Electronics FI-S2P-HFE Datasheet
Download the complete datasheet for JAE Electronics FI-S2P-HFE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

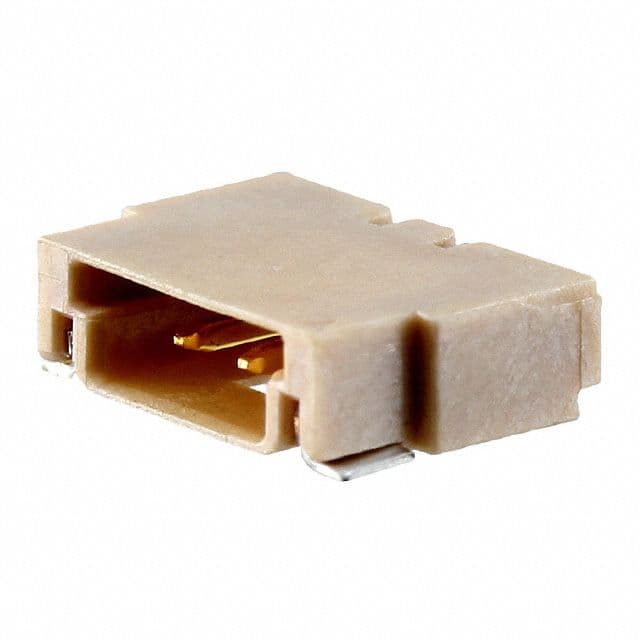

Product Images
