50-position male plug connector with a 0.8mm pitch, designed for surface mount (SMD/SMT) termination. Features gold-plated copper alloy contacts, a 500mA current rating, and a 300V voltage rating. This straight-oriented, two-row connector operates within a -40°C to 85°C temperature range and boasts a UL94 V-0 flammability rating. It is lead-free and RoHS compliant, with a mated stacking height of 17mm.
Voltage Rating300V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
JAE Electronics KX15-50K3DE technical specifications.
General
Contact Material
Copper, Copper Alloy
Contact Plating
Gold
Current Rating
500mA
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
0.8mm
Mated Stacking Heights
17mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Straight
Package Quantity
120
Packaging
Tray
Pitch
0.8mm
RoHS Compliant
Yes
Series
KX15
Termination
SMD/SMT
Voltage Rating
300V
Voltage Rating (AC)
200V
Compliance
RoHS
Compliant
Datasheet
JAE Electronics KX15-50K3DE Datasheet
Download the complete datasheet for JAE Electronics KX15-50K3DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

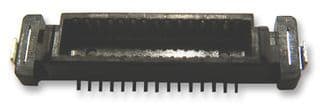

Product Images
