Rectangular power connector featuring 40 male pin contacts with copper/copper alloy construction and tin plating. This IP67 rated, right-angle header offers a 2.5mm pitch and 2 rows, designed for through-hole mounting with solder termination. Rated for 3A current and operating temperatures from -40°C to 125°C, it provides waterproof functionality.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
JAE Electronics MX23A40NF1 technical specifications.
General
Color
Black
Contact Material
Copper, Copper Alloy
Contact Plating
Tin
Contact Type
Male Pin
Current Rating
3A
Depth
33.3mm
Features
WATERPROOF
Gender
Male
Height
16.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Orientation
Right Angle
Packaging
Tray
Pitch
0.098inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.173inch
Series
MX23A
Termination
Solder
Width
65.5mm
Compliance
RoHS
Compliant
Datasheet
JAE Electronics MX23A40NF1 Datasheet
Download the complete datasheet for JAE Electronics MX23A40NF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

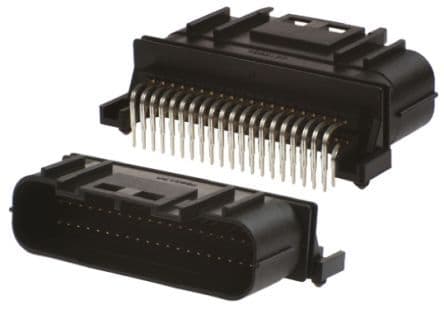

Product Images
