Voltage Rating500V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
JAE Electronics TX24-60R-LT-H1E technical specifications.
General
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 1.27mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TX24 |
| Stack Height | 9mm |
| Termination | Through Hole |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
JAE Electronics TX24-60R-LT-H1E Datasheet
Download the complete datasheet for JAE Electronics TX24-60R-LT-H1E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

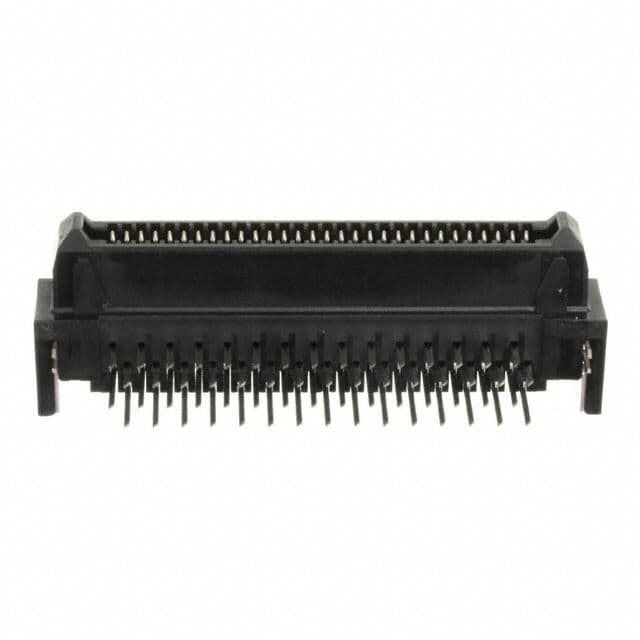

Product Images
