Johnson Electric Burgess
V3NST1YR1UL
Microswitch 250 Vac 8 A 1 x On/(On) Burgess V3NST1YR1UL IP67 momentary 1 pc(s)
Quick Jump:
Technical Specifications
Johnson Electric Burgess V3NST1YR1UL technical specifications.
General
Contact Material
Silver
Contact Type
1 change-over
Height
10.4mm
Length
15.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Ratings
IP67
Width
33mm
Compliance
RoHS
Not Compliant
Datasheet
Johnson Electric Burgess V3NST1YR1UL Datasheet
Download the complete datasheet for Johnson Electric Burgess V3NST1YR1UL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

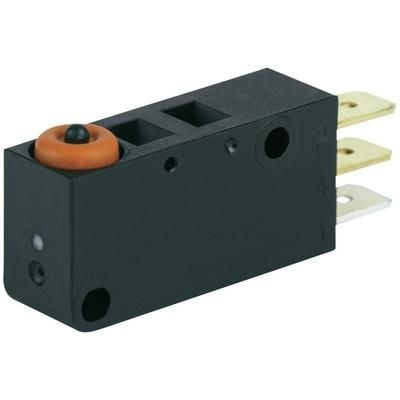

Product Images
