JST
04SUR-04SUR-32W300
LEAD, 4WAY, 0.8MM, 300MM; Connector Type A:IDC Socket, 4 Way; Connector Type B:IDC Socket, 4 Way; SVHC:No SVHC (17-Dec-2014); Body Plating:Tin; Cable Assembly Type:Picoflex, Ribbon; Cable Length:300mm; Cable Length - Imperial:1ft; Cable Length - Metric:300mm; Current Rating:500mA; Flammability Rating:UL94V-0; Jacket Colour:-; Lead Length:300mm; Lead Spacing:0.8mm; Material:Polyamide; No. of Conductors:4; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Operating Temperature Range:-25°C to +85°C; Pitch Spacing:0.8mm; Working Voltage:30V
Package300
Voltage Rating30V
Current Rating500mA
Quick Jump:
Technical Specifications
JST 04SUR-04SUR-32W300 technical specifications.
General
Body Plating
Tin
Package/Case
300
Connector Pitch
0.8mm
Connector Type A
IDC
Connector Type B
IDC
Current Rating
500mA
Flammability Rating
UL94 V-0
Lead Length
300mm
Lead Pitch
0.8mm
Material
Polyamide
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Number of Conductors
4
Wire/Cable Type
Ribbon
Working Voltage
30V
Compliance
RoHS
Compliant
Datasheet
JST 04SUR-04SUR-32W300 Datasheet
Download the complete datasheet for JST 04SUR-04SUR-32W300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

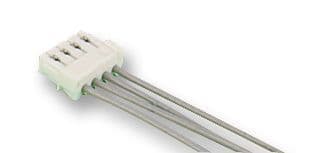

Product Images
