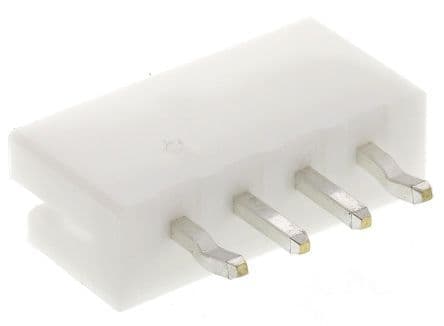

Shrouded header with 4 positions and 1 row, featuring a 2.5mm pitch. This straight, top-entry, through-hole mounted component offers a 3A current rating and 250V AC voltage rating. It utilizes brass and copper alloy male pin contacts with tin plating and a square contact shape. The nylon insulation material is UL94 V-0 rated, and the housing is white.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
JST B4B-EH-A(LF)(SN) technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Brass, Copper Alloy
Contact Plating
Copper, Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
3.8mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
White
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
12.5mm
Mated Stacking Heights
8.1mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
2.5mm
Reach SVHC Compliant
Unknown
Series
EH
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
JST B4B-EH-A(LF)(SN) Datasheet
Download the complete datasheet for JST B4B-EH-A(LF)(SN) to view detailed technical specifications.
