Technical Specifications
JST EHR-5 technical specifications.
General
| Color | Natural |
| Contact Type | Female Socket |
| Depth | 7.1mm |
| Gender | Receptacle |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 14.5mm |
| Mount | Free Hanging, Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Reach SVHC Compliant | No |
| Series | EH |
| Termination | Crimp |
| Width | 3.8mm |
Compliance
| RoHS | Compliant |
Datasheet
JST EHR-5 Datasheet
Download the complete datasheet for JST EHR-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

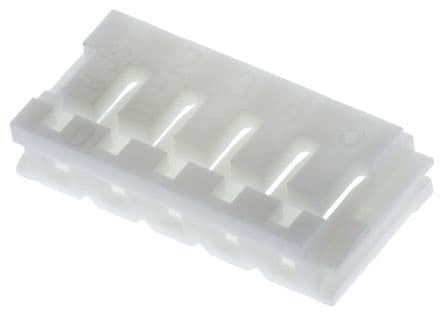

Product Images
