8-position, 1-row shrouded header with a 2.5mm pitch, designed for right-angle PCB mounting. Features tin-plated copper alloy male pin contacts, a nylon insulation material, and a 3A current rating. Operates within a -25°C to 85°C temperature range and offers a 250V voltage rating. Termination is via solder, with a lead length of 3.4mm.
Voltage Rating250V
Current Rating3A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
JST S08B-XASK-1(LF)(SN) technical specifications.
General
| Color | Natural, Beige |
| Contact Finish - Mating | TIN |
| Contact Material | Copper Alloy, Bronze, Copper |
| Contact Plating | Tin |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 7.6mm |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Lead Length | 3.4mm |
| Material | Nylon |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 0.098inch |
| Reach SVHC Compliant | No |
| Series | XA |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 22.5mm |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
JST S08B-XASK-1(LF)(SN) Datasheet
Download the complete datasheet for JST S08B-XASK-1(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

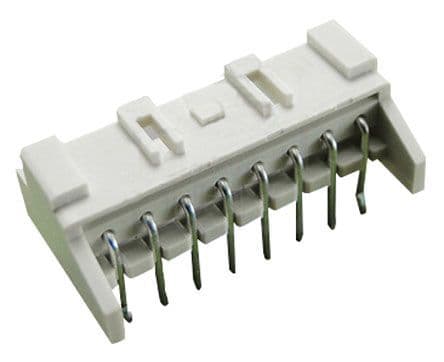

Product Images
