2-position shrouded header with right-angle, through-hole mounting and a 2.5mm pitch. Features male pin contacts made of brass with tin plating, suitable for 22AWG wire. Offers a 3A current rating and 250V voltage rating, with a maximum operating temperature of 85°C. Constructed with a white nylon housing and natural insulation, meeting UL94 V-0 flammability rating.
PackageRadial
Capacitance1nF
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
JST S2B-XH-A(LF)(SN) technical specifications.
General
Capacitance
1nF
Package/Case
Radial
Contact Finish - Mating
TIN
Contact Material
Brass
Contact Plating
Tin, Lead, Copper
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
11.5mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
White
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
2.5mm
Length
7.4mm
Material
Polyamide
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Right Angle
Packaging
Bulk
Pitch
2.5mm
Radiation Hardening
No
Reach SVHC Compliant
No
Series
XH
Termination
Solder
Tolerance
10%
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
100V
Weight
28.349523g
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
JST S2B-XH-A(LF)(SN) Datasheet
Download the complete datasheet for JST S2B-XH-A(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

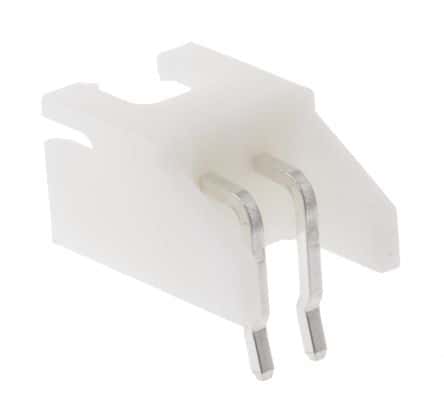

Product Images
