Female wire terminal for crimp termination, featuring bronze contacts with tin plating. Rated for 3A current and 250V working voltage, this component operates within a temperature range of -25°C to 85°C. Designed for 22AWG to 30AWG wire gauges, it accommodates a maximum wire/cable diameter of 1.9mm. Available on tape and reel for efficient assembly.
Resistance0.01R
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
JST SEH-001T-P0.6 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Current Rating
3A
Gender
Female
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Number of Positions
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
0.01R
Series
EH
Termination
Crimp
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
1.9mm
Wire/Cable Gauge
22AWG
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
JST SEH-001T-P0.6 Datasheet
Download the complete datasheet for JST SEH-001T-P0.6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

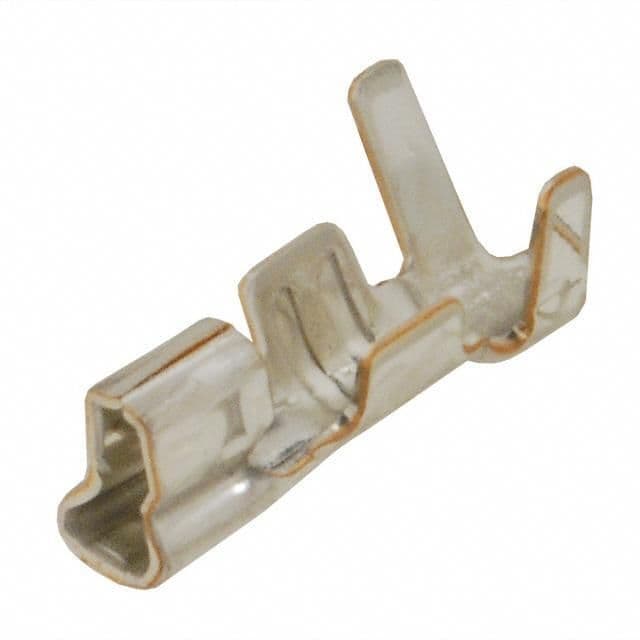

Product Images
