Female, straight orientation wire terminal for 22-28 AWG wire, featuring bronze contacts with tin plating. This component offers a 3A current rating and a 250V voltage rating, operating within a temperature range of -25°C to 85°C. Designed for crimp termination and supplied on tape and reel.
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
JST SHF-001T-0.8BS technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Current Rating
3A
Gender
Female
Lead Free
Lead Free
Length
9mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Number of Contacts
1
Orientation
Straight
Packaging
Tape and Reel
Reach SVHC Compliant
No
Series
NH
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
JST SHF-001T-0.8BS Datasheet
Download the complete datasheet for JST SHF-001T-0.8BS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

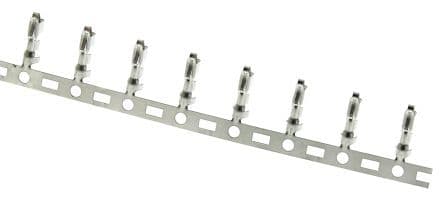

Product Images
