5-position, 1mm pitch wire housing for crimp termination. This straight, cable mount receptacle features a 1A current rating and 50V voltage rating. Constructed from PBT material with a UL94 V-0 flammability rating, it operates between -25°C and 85°C. The housing has a 5mm depth, 8mm length, and 2.8mm width.
Voltage Rating50V
Current Rating1A
MountingFree Hanging
Quick Jump:
Technical Specifications
JST SHR-05V-S-B technical specifications.
General
Color
Natural, White
Contact Type
Female Socket
Current Rating
1A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Free
Lead Free
Lead Pitch
1mm
Length
8mm
Material
PBT
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
1mm
Reach SVHC Compliant
No
Series
SH
Termination
Crimp
Voltage Rating
50V
Voltage Rating (AC)
50V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
JST SHR-05V-S-B Datasheet
Download the complete datasheet for JST SHR-05V-S-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

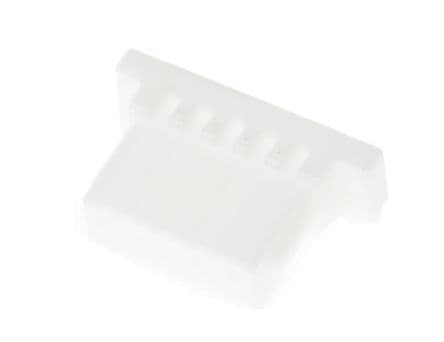

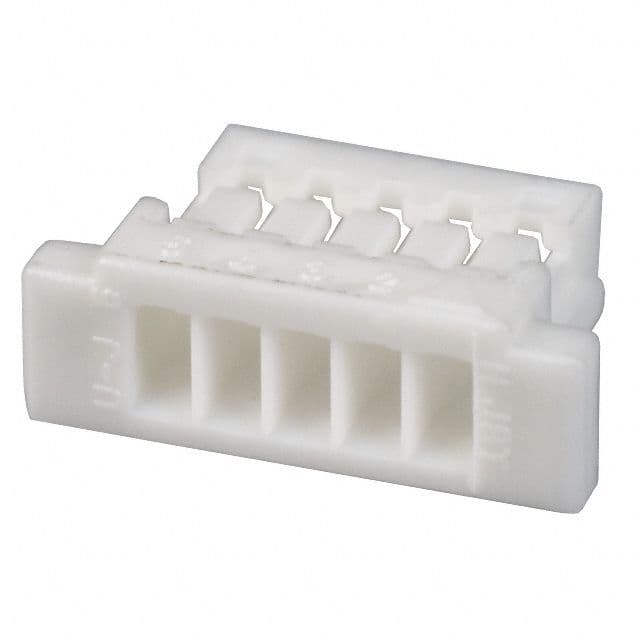

Product Images
