30-position, 2-row shrouded header with a 1mm pitch, designed for right-angle surface mount termination. Features gold-plated bronze male pin contacts with a square shape, rated for 1A current and 50V voltage. The natural colored nylon housing offers UL94 V-0 flammability resistance.
Voltage Rating50V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
JST SM30B-SRDS-G-TF(LF)(SN) technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 1mm |
| Reach SVHC Compliant | No |
| Series | SHD |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
JST SM30B-SRDS-G-TF(LF)(SN) Datasheet
Download the complete datasheet for JST SM30B-SRDS-G-TF(LF)(SN) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

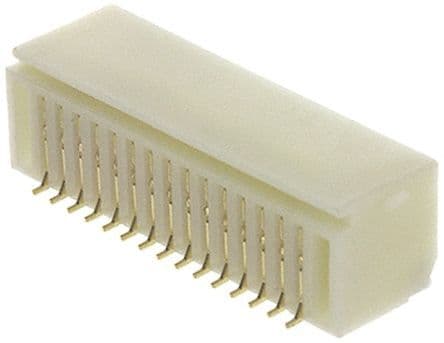

Product Images
