Male wire terminal for crimp termination, featuring a straight orientation and tin-plated bronze contacts. Rated for 2A current and 100V working voltage, this component operates within a temperature range of -25°C to 85°C. Designed for wire gauges from 24AWG to 30AWG, it has a contact resistance of 0.01 Ohm and a maximum wire/cable diameter of 1.5mm. This lead-free assembly tool is supplied on tape and reel.
Resistance0.01R
Voltage Rating100V
Current Rating2A
Quick Jump:
Technical Specifications
JST SPH-002T-P0.5S technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Current Rating
2A
Depth
1.5mm
Gender
Male
Lead Free
Lead Free
Length
5.7mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
100V
Orientation
Straight
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
0.01R
Series
PH
Termination
Crimp
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
24AWG
Wire/Cable Diameter
1.5mm
Wire/Cable Gauge
24AWG
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
JST SPH-002T-P0.5S Datasheet
Download the complete datasheet for JST SPH-002T-P0.5S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

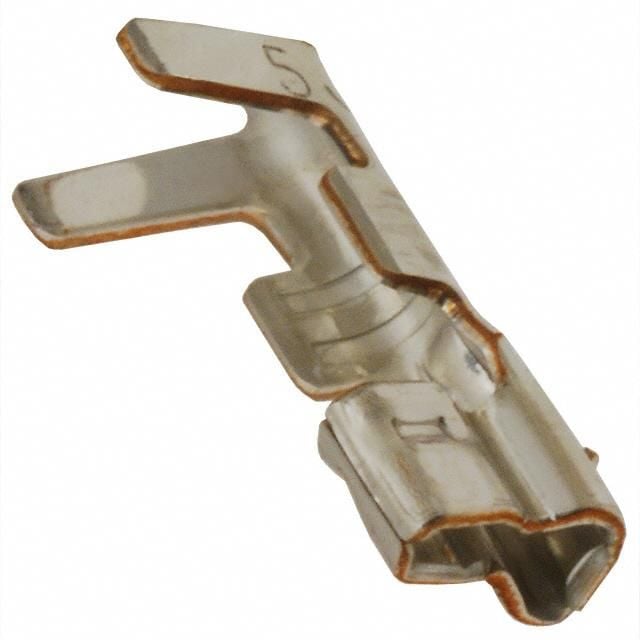

Product Images
