Female crimp socket contact for signal and power applications. Features bronze contact material with tin plating for reliable conductivity. Designed for cable mounting with a wire gauge range of 22-26 AWG. Operates within a temperature range of -25°C to 85°C. Lead-free construction.
Quick Jump:
Technical Specifications
JST SPHD-001T-P0.5 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Gender
Female
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Packaging
Cut Tape
Series
PHD
Termination
Crimp
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
JST SPHD-001T-P0.5 Datasheet
Download the complete datasheet for JST SPHD-001T-P0.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

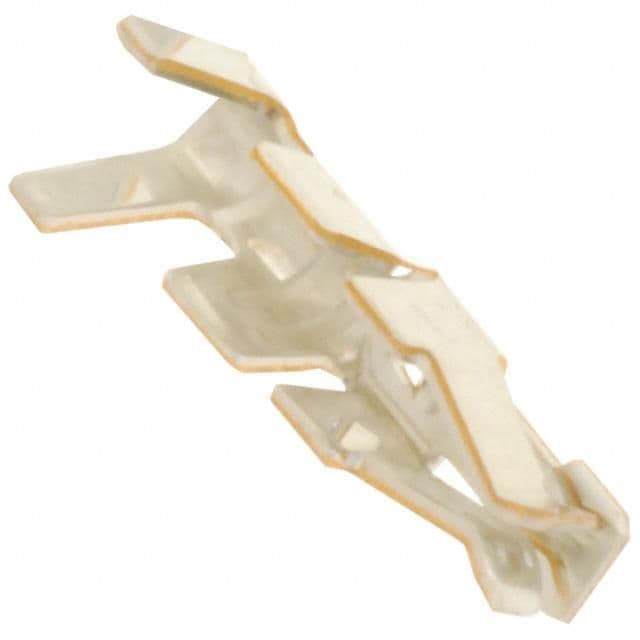

Product Images
