Crimp-style receptacle connector for signal applications, featuring a single contact made of tin-plated bronze. This component supports a 3A current rating and a 250V voltage rating, operating within a temperature range of -25°C to 85°C. Designed for wire gauges from 24AWG to 28AWG, it is supplied on cut tape for efficient assembly.
Voltage Rating250V
Current Rating3A
MountingSocket
Quick Jump:
Technical Specifications
JST SPHD-002T-P0.5 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Signal
Current Rating
3A
Gender
Receptacle
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Socket
Number of Contacts
1
Number of Rows
1
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Series
PHD
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
JST SPHD-002T-P0.5 Datasheet
Download the complete datasheet for JST SPHD-002T-P0.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

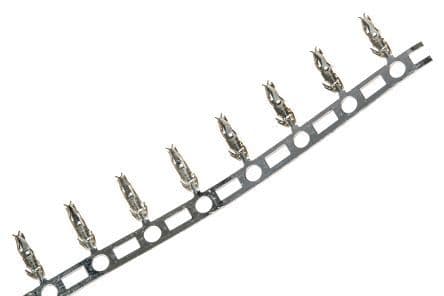

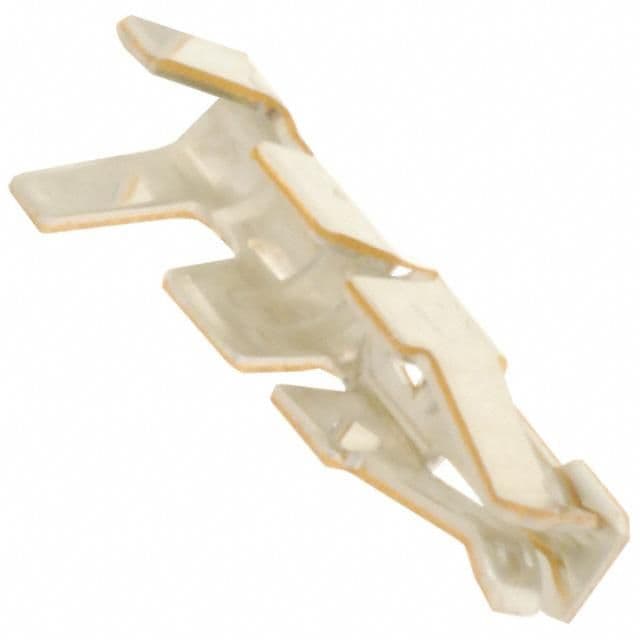

Product Images
