Lead-free signal and power socket contact for cable mounting. Features bronze contact material with tin plating, designed for crimp termination of 28-32AWG wire. Rated for 50V, this single-contact component is supplied on a reel in cut tape packaging.
Voltage Rating50V
MountingSocket
Quick Jump:
Technical Specifications
JST SSH-003T-P0.2-H technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Lead Free
Lead Free
Mount
Socket
Number of Contacts
1
Package Quantity
23000
Packaging
Cut Tape
Series
SH
Termination
Crimp
Voltage Rating
50V
Wire Gauge (Max)
32AWG
Wire Gauge (Min)
28AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
JST SSH-003T-P0.2-H Datasheet
Download the complete datasheet for JST SSH-003T-P0.2-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

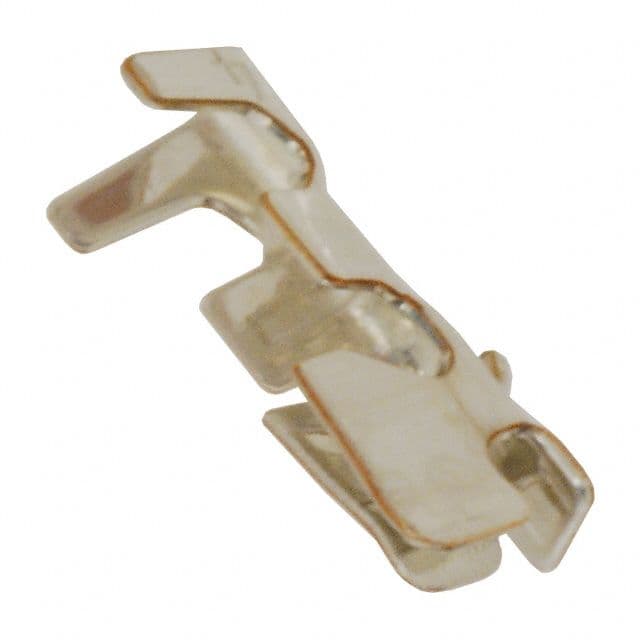

Product Images
