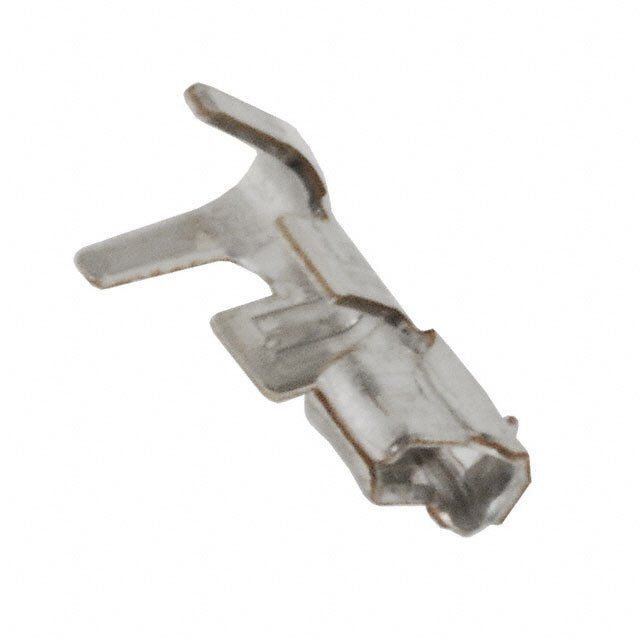

Crimp-style receptacle terminal for wire/cable gauges 26AWG to 28AWG, designed for 0.08mm² wire. Features tin-plated bronze contacts, a straight orientation, and a single position. Operates within a temperature range of -25°C to 85°C, with a maximum current rating of 1A and a voltage rating of 50V. This component is supplied on tape and reel for efficient assembly.
Voltage Rating50V
Quick Jump:
Technical Specifications
JST SZH-002T-P0.5 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Depth
1.1mm
Gender
Receptacle
Lead Free
Lead Free
Length
4mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
50V
Number of Contacts
1
Number of Positions
1
Orientation
Straight
Packaging

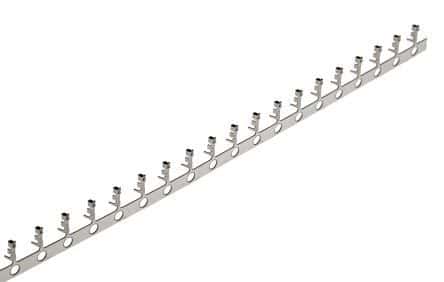

Tape and Reel
Reach SVHC Compliant
No
Series
ZH
Termination
Crimp
Voltage Rating
50V
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
JST SZH-002T-P0.5 Datasheet
Download the complete datasheet for JST SZH-002T-P0.5 to view detailed technical specifications.
