Technical Specifications
JST SZH-003T-P0.5 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin
Depth
1.1mm
Gender
Receptacle
Lead Free
Lead Free
Length
4mm
Max Current Rating
7A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
50V
Mount
Socket
Number of Contacts
1
Orientation
Straight
Packaging
Tape and Reel
Reach SVHC Compliant
No
Series
ZH
Termination
Crimp
Voltage Rating
50V
Wire Gauge (Max)
32AWG
Wire Gauge (Min)
28AWG
Wire/Cable Gauge
32AWG
Compliance
RoHS
Compliant
Datasheet
JST SZH-003T-P0.5 Datasheet
Download the complete datasheet for JST SZH-003T-P0.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

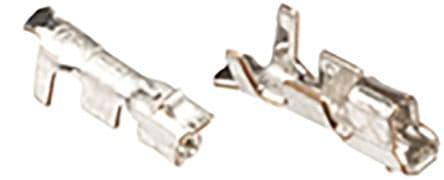

Product Images
