JST
ZMR-3
JST (JAPAN SOLDERLESS TERMINALS) ZMR-3 Wire-To-Board Connector, ZM Series, Crimp, Plug, 3 Contacts, 1.5 mm
Current Rating700mA
MountingTermination
Quick Jump:
Technical Specifications
JST ZMR-3 technical specifications.
General
Color
White
Contact Material
Tin
Current Rating
700mA
Gender
Male
Height
8.1mm
Lead Pitch
1.5mm
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Termination
Number of Contacts
3
Number of Rows
1
Pitch
1.5mm
Reach SVHC Compliant
No
Termination
Crimp
Voltage Rating (AC)
50V
Width
3.6mm
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
JST ZMR-3 Datasheet
Download the complete datasheet for JST ZMR-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

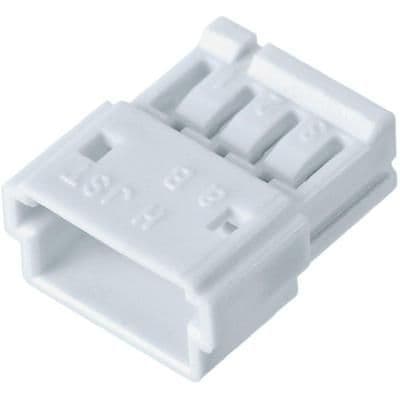

Product Images
