Radial multilayer ceramic capacitor with 220pF capacitance and 100V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 5% tolerance. Designed for through-hole PCB mounting with a 2.54mm lead pitch and 0.51mm lead diameter. This RoHS compliant component offers extreme low ESR and a dissipation factor of 0.1%.
PackageRadial
Voltage100V
Capacitance220pF
Voltage Rating100V
Quick Jump:
Technical Specifications
Kemet C315C221J1G5TA technical specifications.
General
Capacitance
220pF
Package/Case
Radial
Construction
RADIAL
Depth
2.54mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
0.1%
Height
2.54mm
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Length
7mm
Lead Pitch
2.54mm
Lead/Base Style
Straight
Length
3.81mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GoldMax 300 Comm C0G
Termination
Radial
Tolerance
5%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Width
3.81mm
Compliance
RoHS
Compliant
Datasheet
Kemet C315C221J1G5TA Datasheet
Download the complete datasheet for Kemet C315C221J1G5TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

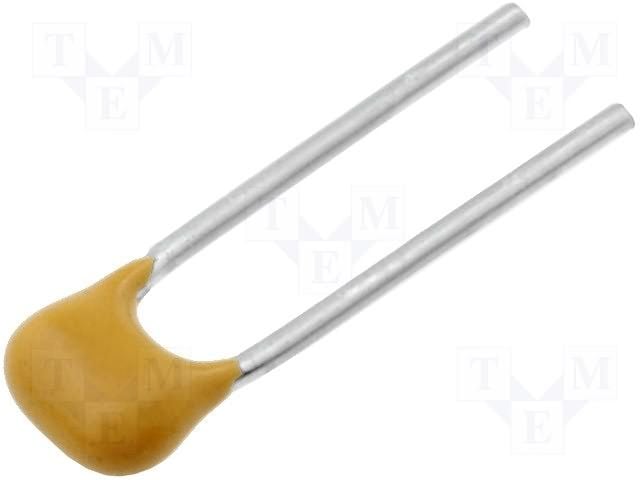

Product Images
