Solid Tantalum Capacitor, 47µF capacitance, 4V DC rated voltage, and 20% tolerance. Features a 2.5 Ohm ESR and a maximum operating temperature of 125°C. Surface mountable with a 3.2mm x 1.6mm x 1.6mm (3216 metric) case size. Packaged in tape and reel, this general-purpose component is lead-free and RoHS compliant.
Package1206
Capacitance47uF
Resistance2.5R
Voltage Rating4V
Quick Jump:
Technical Specifications
Kemet T491A476M004AT technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
2.5R
Failure Rate
0.001%
Features
General Purpose
Height
1.8mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Resistance
2.5R
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
4V
DC Rated Voltage
4V
Weight
0.000571oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491A476M004AT Datasheet
Download the complete datasheet for Kemet T491A476M004AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

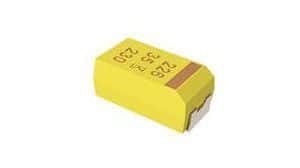

Product Images
