Polarized tantalum capacitor, 10µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 6032 metric case code (2312 imperial), surface mount termination, and a molded construction. Operating temperature range from -55°C to 125°C with a low leakage current of 1.6µA and 1.8Ω ESR. RoHS compliant and lead-free.
PackageMolded
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet T491C106M016AT technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.8R
Features
General Purpose
Height
2.5mm
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
1.6uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491C106M016AT Datasheet
Download the complete datasheet for Kemet T491C106M016AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

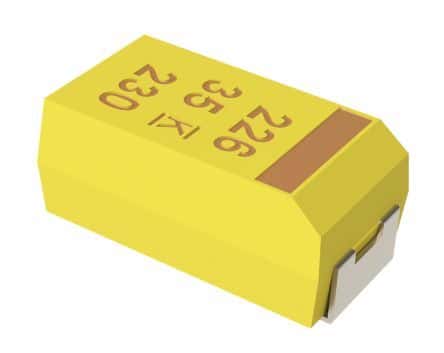

Product Images
