Technical Specifications
Keystone Electronics 1264 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Gender | Female |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 0.576inch |
| Material | Brass |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Tab Thickness | 0.02inch |
| Tab Width | 0.187inch |
| Termination | Crimp |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | -16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Keystone Electronics 1264 Datasheet
Download the complete datasheet for Keystone Electronics 1264 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

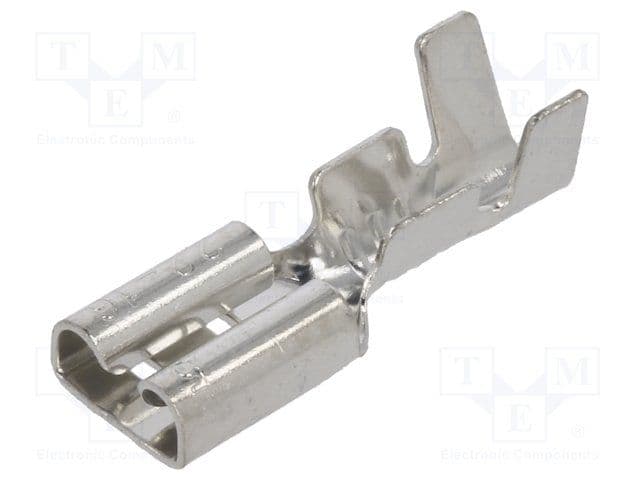

Product Images
