Male, non-insulated quick disconnect terminal featuring brass construction with tin plating for enhanced conductivity and corrosion resistance. This straight-oriented, through-hole mount terminal offers a 0.25-inch tab width and 0.032-inch tab thickness, with an inside diameter of 1.78mm. Rated for UL approval and RoHS compliance, it utilizes solder termination and is supplied in bulk packaging.
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Keystone Electronics 4966 technical specifications.
General
Approvals
UL
Contact Material
Brass
Contact Plating
Tin
Diameter
0.056inch
Finish
Tin
Gender
Male
Inside Diameter
1.78mm
Insulation
Non-Insulated
Lead Free
Lead Free
Length
0.59inch
Material
Brass, Tin
Mount
Through Hole, Horizontal
Number of Positions
1
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tab Length
0.312inch
Tab Thickness
0.032inch
Tab Width
0.25inch
Terminal Material
Brass
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Keystone Electronics 4966 Datasheet
Download the complete datasheet for Keystone Electronics 4966 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

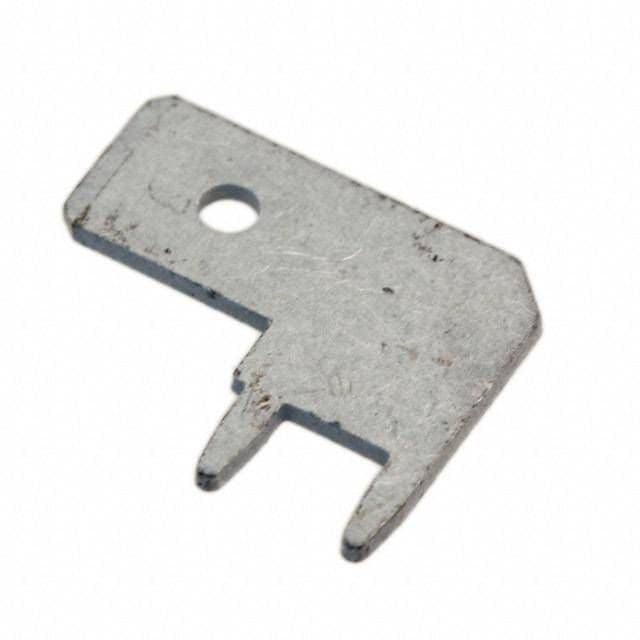

Product Images
