Kingbright
KP-2012MBC
Single Color LED, Blue, Water Clear, 1.3mm, 2 X 1.25 MM, 1.1 MM HEIGHT, SMD, 2 PIN
Package2012
MountingSurface Mount
Power105mW
Quick Jump:
Technical Specifications
Kingbright KP-2012MBC technical specifications.
General
Package/Case
2012
Color
Blue
Forward Current
20mA
Lens Style
Rectangular, Diffused, Colorless
Luminous Intensity
8mcd
Mount
Surface Mount
Number of LEDs
1
Packaging
Cut Tape
Power Dissipation
105mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
120°
Wavelength
430nm
Compliance
RoHS
Compliant
Datasheet
Kingbright KP-2012MBC Datasheet
Download the complete datasheet for Kingbright KP-2012MBC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

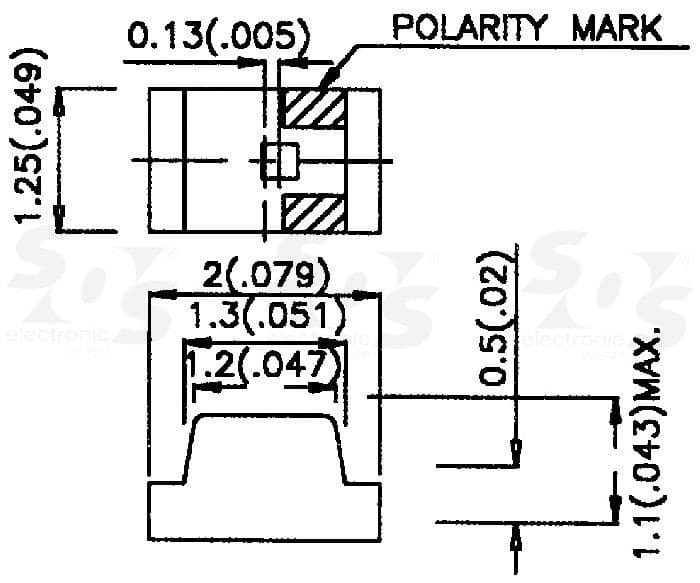

Product Images
